Ring Rolling Mill
03  ·  Core Process

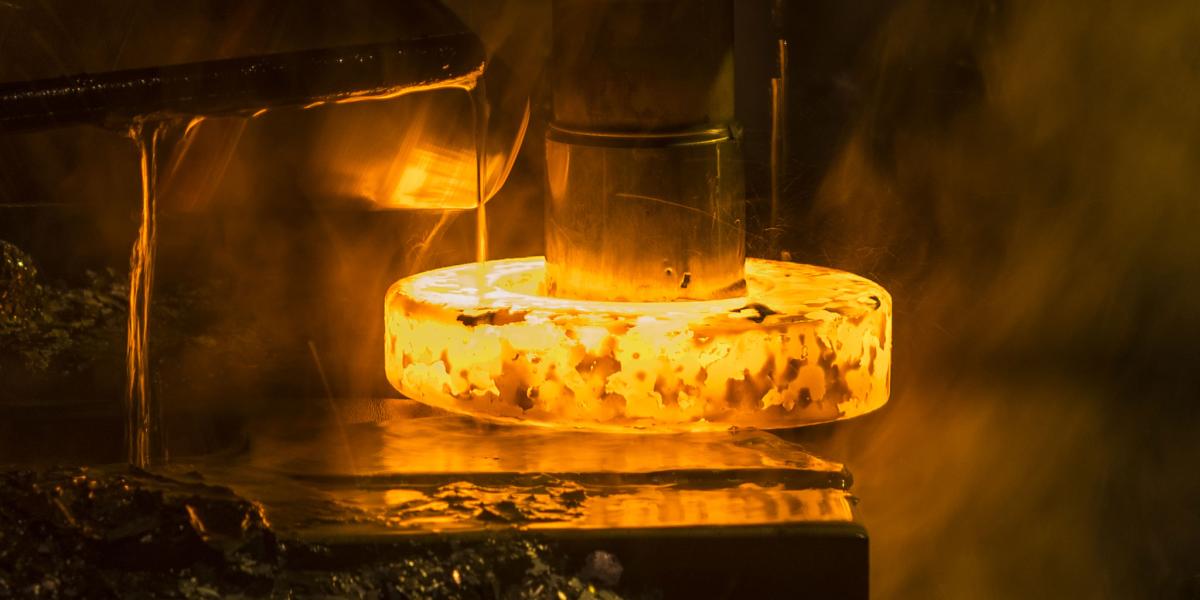

Ring Rolling

Our CNC-controlled radial / radial-axial ring rolling mill expands metal billets on rollers to produce seamless rings up to 800 mm OD and 350 kg, with uniform grain structure and enhanced mechanical properties. Advanced dimensional control keeps ring profile integrity consistent for critical applications.

Typical Components

  • Seamless rolled rings
  • Flanges (slip-on, weld-neck, blind)
  • Bearing rings
  • Gear ring blanks
  • Couplings, hubs & pressure vessel rings

Machine Specification

  • Max outer diameter800 mm
  • Max ring weight350 kg
  • Min wall thickness25–30 mm
  • Ring height range30–300 mm
  • Radial rolling force1,200–2,000 kN
  • Axial rolling force800–1,600 kN
  • Operating temperature950–1,200 °C
Materials: Carbon steel · Alloy steel · Stainless · Non-ferrous
